Overview: What Is Neo4j (Graph Database)?

Neo4j is the leading graph database. It's offered commercially, fully supported and open sourced. Created in 2007, Neo4j is a No-SQL database that's Java based, schema optional and massively scalable. So what is Neo4j? It's commonly viewed as the best enterprise-ready graph database available today. In this article, we discuss graph databases and examine the features and advantages of Neo4j.

What Is a Graph Database?

Fundamentally, graph databases store data in the form of graphs. A graphs is a mathematical concept that classifies elements in terms of vertices (nodes) and edges (relationships) to understand connections and patterns within the information being studied. When using a graph database like Neo4j, these graphs are often represented visually.

Graph databases are a relatively new class of database leveraged for use cases that are particularly focused on connectedness within data. In other words, while graph databases store data like nodes and edges, they focus more heavily on the relationships that are often hidden among the many elements within masses of data. In a graph database, relationships are first-class citizens along with data objects.

While Neo4j is often referred to as schemaless, a better term is "schema optional" since a schema can be used (though not required). (See What is GraphAware Hume? for more information on creating Neo4j schemas.)

what is a neo4j graph database laptop code
Source: neo4j.com

To learn more, read our in-depth article “What Is a Graph Database?”, and check out this helpful video from Neo4j.

Why Are Graph Databases Valuable?

We live in a world that's becoming more and more connected. As a result, our data is becoming more connected as well. Given the volume of data that's produced globally each day, the value of the relationships inside the data is fast becoming more valuable than the data itself. The unique value of graph databases comes from its ability to surface new interconnected knowledge, natively and at scale, as analytical insights that have material impacts on businesses and other organizations.

Can’t RDBMS Do This?

With enough development time and compute power, RDBMS can do many things for which it's not ideally suited. Unlike graph databases, traditional relational databases do not natively store relationships among data sets. Rather, RDBMS only store the data itself. It can then only calculate relationships at run time. This is time consuming and compute expensive when the same information can be returned in milliseconds from a  simple graph query. Practically speaking, RDBMS is ill suited for many use cases, whereas Neo4j and other graph databases excel.

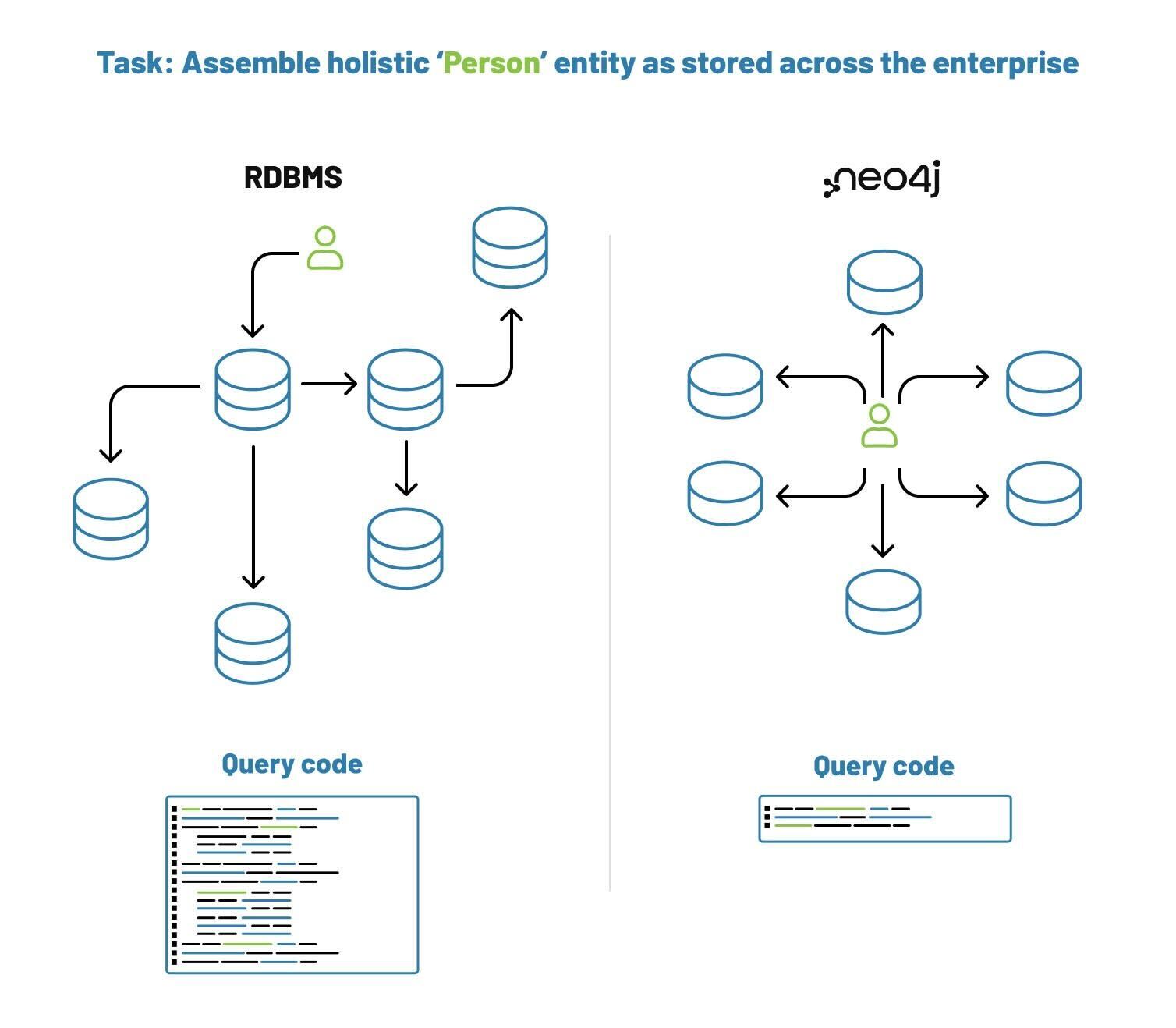

neo4j graph database vs rdbms graph database

Leading Graph Databases

While Neo4j is the most mature and well-adopted graph database in the world by a significant margin, there are dozens of others available, which are generally divided into native (e.g. Neo4j) and multimodel (e.g. CosmosDB). For more detail on the differences between native and multimodal graph databases, check out our Neo4j performance article where we discuss Neo4j architecture. At present, the top ten graph databases across both native and multimodel include:

  1. Neo4j
  2. Microsoft CosmosDB (certainly over-ranked due to ComosDB multi-model SQL Server popularity)
  3. Virtuoso
  4. ArangoDB
  5. OrientDB
  1. Amazon Neptune
  2. GraphDB
  3. JanusGraph
  4. TigerGraph
  5. DGraph
Check out the full rankings of leading graph databases from DB-engines.

Principal Neo4j Features

  1. Cypher. A familiar SQL-like query language
  2. LPG. Labelled property graph model
  3. Native graph. Includes native graph storage and native graph processing engine (GPE)
  4. Index-optional. Index-free adjacency drives performance; Neo4j can also leverage indices using Apache Lucence
  5. Schema optional. Neo4j offers a schema-optional interaction made possible by the nature of the data and the storage itself; there are use cases for deploying a schema, but certainly not in all cases
  6. UNIQUE. Supports UNIQUE constraints
  7. Strong UI. Neo4j Data Browser is an easy way to execute Cypher commands
  8. ACID compliant. Neo4j's database integrity is founded on atomicity, consistency, isolation and durability
  9. Exports. Supports exporting to JSON and Excel
  10. API access.
    1. REST API is accessible via any means using REST protocol (e.g., Java, Spring, etc.)
    2. JavaScript access via any UI MVC framework (e.g. Node JS)
    3. Java with two APIs: native Java API and Cypher API
  11. Sharding. Neo4j sharding is their advanced, distributed computing offering as of version 4.0

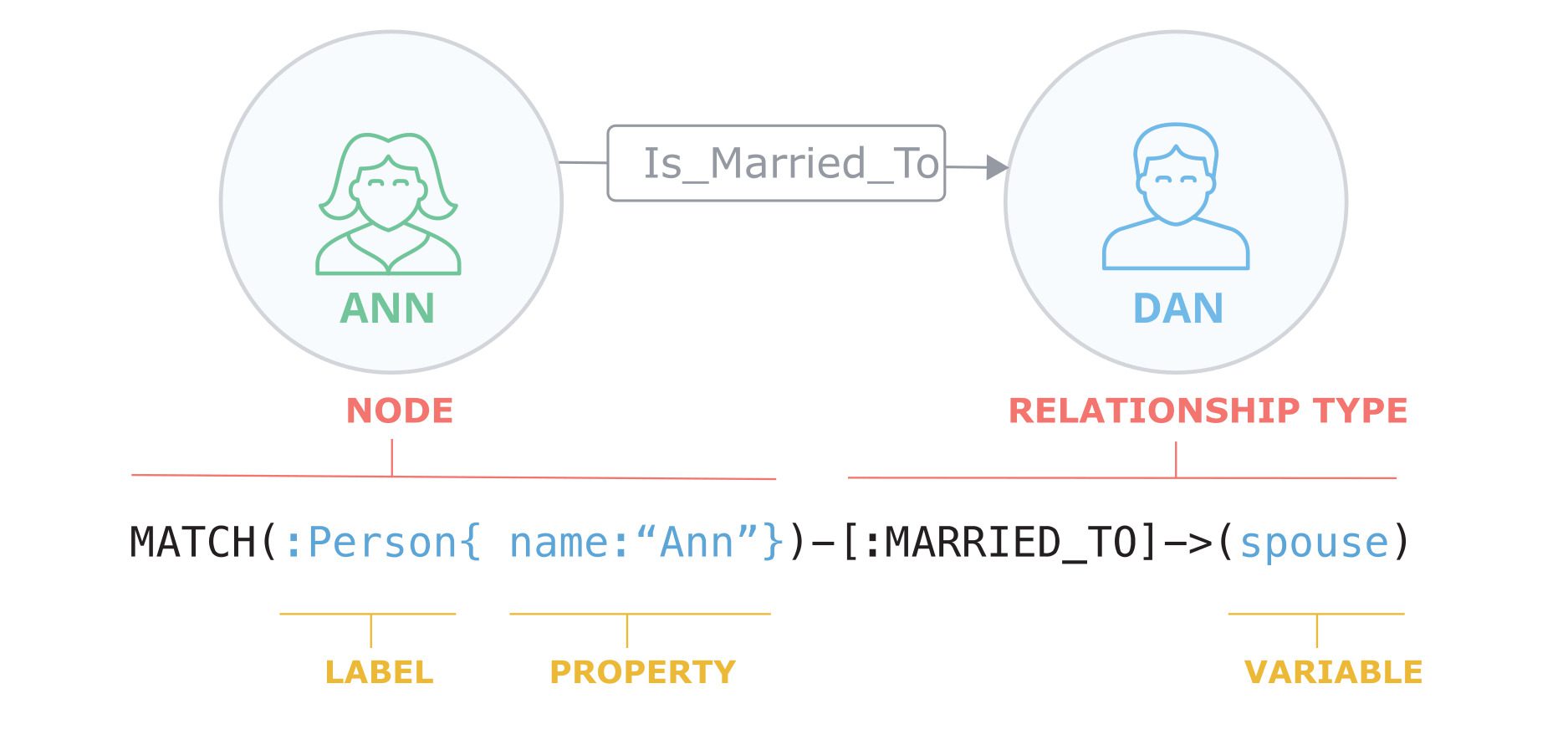

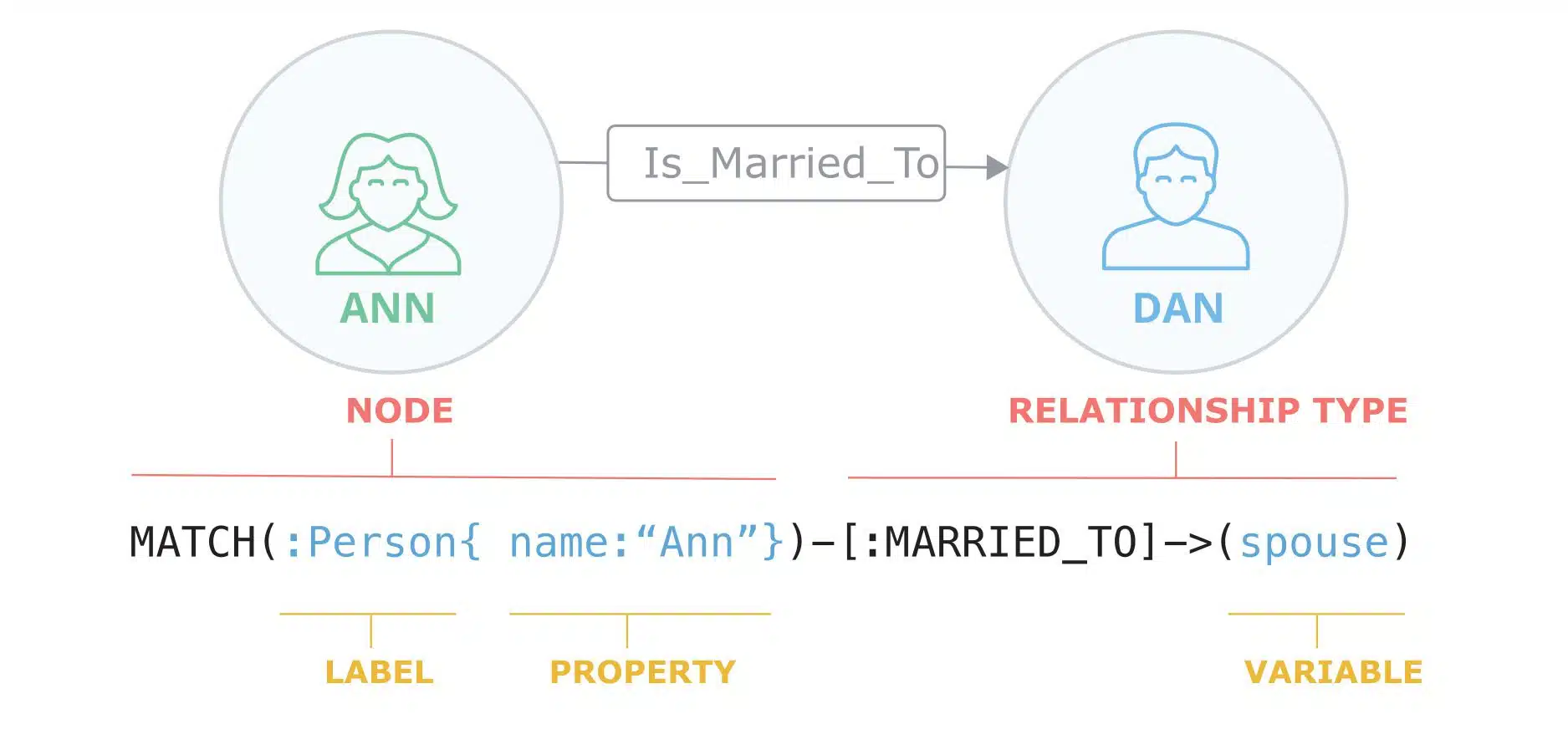

feature of neo4j cypher
Source: neo4j.com
neo4j is number 1 graph database
Source: neo4j.com

Costs

While there's a free open-sourced version of Neo4j, most production use cases are now based on the commercial version. Click to learn more specifics about Neo4j pricing.

Top Advantages of Neo4j (Graph Database)

  1. First mover. Neo4j is more widely adopted in the market than any other solution. In fact, Neo4j Founder Emil Efreim actually coined the term "graph database".
  2. Community. Neo4j has a thriving user community, active forums, deep documentation and resources for any graph databased-related questions.
  3. Performance. Neo4j is one of the very few true native graph databases, which enables index-free adjacency for massive performance gains.
  4. Availability. From massive real-time applications to analytically focused graph and graph data machine learning apps, Neo4j sets the bar for meeting HA requirements.
  5. ACID Compliant. Neo4j's performance across both read and write has been demonstrably scaled to the enterprise. It has also maintained integrity with true ACID compliance, which is still lacking in most other offerings.
  6. Easy access. It's easy to interact with Neo4j, whether through the Neo4j Browser UI with Cypher query language (which is much easier than alternatives like Gremlin) or through the Java API.
  7. Unstructured / semi-stuctured / textual data. Deriving value from the absolutely massive and growing amount of unstructured textual data available today has never been easy. Given the unique capacity for graphs to embed meaning and connect concepts, Neo4j is the ideal solution for driving insight. Additionally, Neo4j is a leader in natural language processing (NLP) with graphs.
  8. Graph data science. Neo4j is the commercial leader in data science with graphs, including NLP use cases. Given that Google has asserted the future of data science is being built around network theory / graph databases, this is a significant advantage for Neo4j.
top advantages of neo4j graph database grid
Source: neo4j.com

When to Use Neo4j

What is Neo4j used for? While Neo4j can be used for most use cases, its unique value becomes evident for uses cases that are focused on connectedness within the data. Some of the most common uses cases include:

All of these use cases involves how things are connected to other things, how people are connected to other people or other entities in the data. Read about more Neo4j use cases from Graphable.

Neo4j Customers

Close to 1,000 commercial customers and nearly 5,000 startups use Neo4j. Some of the well-known commercial brands that use Neo4j include:

Neo4j Customer - Novartis
Neo4j Customer - Zurich Insurance Switzerland
Neo4j Customer - NASA
Neo4j Customer - Allianz Benelux
Neo4j Customer - MITRE
Neo4j Customer - Novartis
Neo4j Customer - UBS
Neo4j Customer - Vanguard
Neo4j Customer - NBC News
Neo4j Customer - Comcast
Neo4j Customer - Pitney Bowes

Source: Neo4j.com: All logos are Neo4j customers (not Graphable customers). Each logo is clickable and linked to the Neo4j source case study in which the logo is used.

  • eBay
  • Walmart
  • Cisco
  • Citibank
  • HP
  • The National Geographic Society
  • Verizon
  • US Army
  • Vanguard
  • Microsoft
  • IBM
  • Thomson Reuters
  • Airbus
  • Orange
  • AT&T
  • Caterpillar
  • Volvo Cars
  • Comcast

Get Help With Neo4j

Need help with your Neo4j project? As experts in Neo4j graph DB, we can support you in any part of your project lifecycle, but we specialize in leading through the entire process. Contact us today to learn more about our Neo4j consulting serivces.
